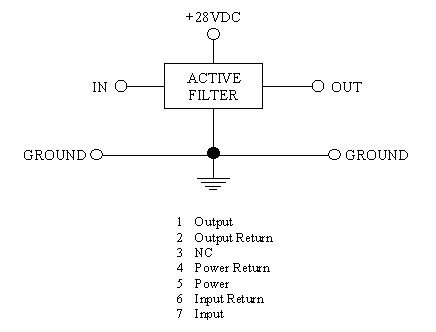

TRANSDUCER FILTER (LOW PASS)
FEATURES
|
|
|
|
|
|
|
|
|
POWER REQUIREMENTS |
|
|
VOLTAGE: |
28 +-4VDC |
|
CURRENT: |
<20Ma |
|
OVERVOLTAGE PROTECTION: |
+-40VDC |
|
SPECIFICATIONS |
|
|
TYPE: |
6 Pole Butterworth, Low Pass |
|
INPUT: |
+-7.5V Maximum |
|
FREQUENCY: |
10Hz to 5KHz in 1, 2, 5 Sequence |
|
GAIN: |
1.0 +-1% |
|
GAIN STABILITY: |
+-1% for B+ or temperature variations |
|
TEMPERATURE RANGE: |
-40 deg C to +85 deg C for specified operation |
FOR MORE DETAILED SPECIFICATIONS, CONTACT FACTORY OR LOCAL REPRESENTATIVE
