THE MINI 5 VOLT VCO & MA

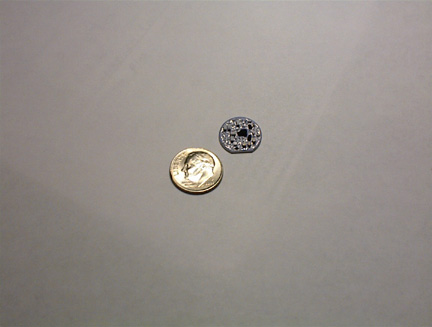

THE SMALLEST/LOWEST VOLTAGE, THICK-FILM VCO & MIXER AMPLIFIER THATS MANUFACTURED.

USED IN HIGH "G" APPLICATIONS OR WHEN MINIMAL SIZE IS THE REQUIREMENT

PROPORTIONAL BANDWITH

HIGH LEVEL SUBCARRIER OSCILLATORS



GENERAL PERFORMANCE SPECIFICATIONS



TEMPERATURE STABILITY OF OUTPUT FREQUENCY:

3% dbw for center frequency and bandwidth variations, from a best reference frequency from -40C to +85C.

BAND EDGE ACCURACY:

2.0% dbw

LINEARITY:

0.6 dbw, best straight line, maintained from -40C to +85C

TIME STABILITY:

0.25% dbw for 8 hours @25C after 1 minute.

DISTORTION:

<1.0% -40C to +85C

AMPLITUDE MODULATION:

<10.0%

INTELLIGENCE FREQUENCY RESPONSE:

0.1 dB of DC response for a modulation index of 5 or greater.

INPUT SPECIFICATIONS

INPUT IMPEDANCE:

125 KW 's

INPUT VOLTAGE:

0+5 Volts

SOURCE IMPEDANCE SENSITIVITY:

<10.0% dbw for source impedance change of zero to infinity.

OUTPUT SPECIFICATIONS

OUTPUT INPEDANCE:

47 KW 's, 10%

OUTPUT VOLTAGE:

0.070 0.005 volts RMS at center frequency into a load of 10 KW 's shunted by 10pf. Frequencies >600 kHz, 10K/0pf. Output will not vary more than 20% over the temperature range of -40C to +85C from a 25C reference voltage.

MODULATION FEEDTHROUGH:

40 dB below output signal level.

POWER SPECIFICATIONS

POWER REQUIREMENTS:

+5 0.5 volts @ 20 mA. Max.
